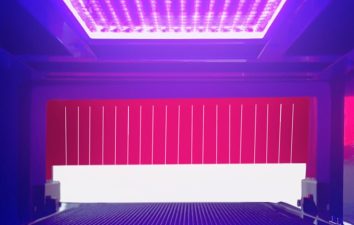

About Dymax UVCS v3.0 LED UV Curing Conveyor
The Dymax UVCS v3.0 is a fully customizable, LED UV curing conveyer which uses high-intensity UV/visible light sources for the fast curing of compatible UV adhesives, coatings and encapsulants. The system produces consistent, uniform coverage over 254 mm x 254 mm, allowing large format parts to be processed quickly and efficiently.
Incorporating up to four Dymax Bluewave FX-1250 LED UV emitters, available in 365nm, 385nm, or 405nm wavelengths, conveyers can be tailored to best suit your materials and processes. The UV array can be arranged in several vertical and horizontal patterns to ensure optimum coverage.
The UVCS V3.0 LED conveyor is equipped with an automated part sensing feature and offers various operation modes, including an oven mode and high-speed conveying mode. A sophisticated touchscreen control panel enables full control of UV intensity and belt speed process parameters. Belt and edge-carry versions are available for further flexibility.
Features & Benefits
- Large cure area: From 127 mm x 127 mm to 254 mm x 254 mm
- Highly uniform and even LED UV light across the cure area
- Intensities from 1,700-2,100 mW/cm2 depending on wavelength
- Three wavelengths available: 365, 385, and 405 nm
- Uses LED technology, allowing consistent output, no bulbs to replace and no warm-up time
- Simultaneously supports up to four emitters for large part processing
- 8” touchscreen, menu-driven programming and operationpro
Specifications
| Specification | |
|---|---|
| Curing area | From 127 mm x 127 mm to 254 mm x 254 mm |
| Belt width | 30 cm |
| Belt speed | 0.4 m/min ~ 7.8 m/min, in 0.1 m/min increments |
| Load capacity | Left to right 30 kg Right to left 25 kg |
| Emitter adjustment range | 12 – 152 mm |
| Dimensions (H x W X D) | 131 cm x 104.6 cm x 173 cm |
| Operating environment | 10 – 40°C, 0-80% relative humidity, non-condensing |
| Weight | 90 kg |
Other Information
 |
Top Tips for getting the best from your UV curing process
Read through our easy-to-follow guide on UV curing to maximise your processes productivity. |
Find out more about the technology behind the QX4 by reading our technical bulletins and white papers:
All Downloads
| Filename | Size | Download |
| DYMAX UVCS V3.0 LED UV Curing Conveyor System Product Bulletin | 2.01MB |  |
| Light curing equipment selector guide | 1.81MB | |
| Top Tips for Getting the Best From Your UV Curing Process | 4.35MB | |
| UV Curing and Tack-Free Cures | 0.23MB | |
| Achieve Better Process Controls with Light Cure Technology | 0.36MB | |
| LED Curing of Light-Curable Materials - Unraveling the Myths and Realities | 0.29MB | |
| Sustainability benefits of LED UV curing | 0.35MB | |
Ordering Information
| Part number | Description |
|---|---|
| Base Conveyor and Emitter Cradle Options | |
| DYM88896 | Dymax UVCS V3.0 belt conveyor kit with horizontal cradle |
| DYM88897 | Dymax UVCS V3.0 belt conveyor kit with vertical cradle |
| DYM88898 | Dymax UVCS V3.0 edge-carry conveyor kit with horizontal cradle |
| DYM88899 | Dymax UVCS V3.0 edge-carry conveyor kit with vertical cradle |
| FX-1250 Part Options | |
| DYM88850 | BlueWave FX-1250 single channel controller for 1 emitter |
| DYM88851 | BlueWave FX-1250 dual channel controller for up to 2 emitters |
| DYM84025 | BlueWave FX-1250 interconnect cable – Type L & L |
| DYM84026 | BlueWave FX-1250 interconnect cable – Type I & L |
| DYM88801 | BlueWave FX-1250 RediCure 365nm LED flood emitter |
| DYM88802 | BlueWave FX-1250 PrimeCure 385nm LED flood emitter |
| DYM88803 | BlueWave FX-1250 VisiCure 405nm LED flood emitter |
| DYM88856 | Dymax BlueWave FX-1250 RediCure 365nm LED Flood System |
| DYM88857 | Dymax BlueWave FX-1250 PrimeCure 385nm LED Flood System |
| DYM88858 | Dymax BlueWave FX-1250 VisiCure 405nm LED Flood System |
| Accessories | |
| DYM80020 | Dymax UVCS V3.0 cabinet |
| DYM80021 | Dymax UVCS V3.0 spare cradle, vertical integration |
| DYM80022 | Dymax UVCS V3.0 spare cradle, horizontal integration |
