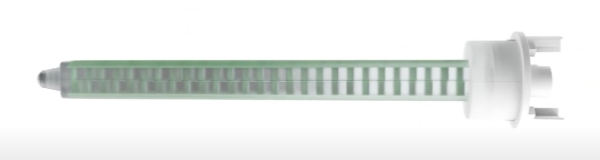

Have you ever wondered why some mixing nozzles are square? Well, there is a reason why medmix MIXPAC Quadro nozzles are often preferred to their round helical alternatives.
The Quadro system is designed to mix two-part epoxy, polyurethane, and methyl methacrylate adhesives and sealants, packaged in twin cartridges, more efficiently. The advanced geometry of the mixing elements means that materials are mixed in a shorter distance so that nozzles are shorter and more compact, thus reducing material wasted in the nozzle.
The two-part materials entering the Quadro nozzle form layers that are doubled with each mixing element. Over the length of a 24-element nozzle, for example, the resulting compound contains nearly 17 million mix-optimised layers. The unique Quadro mixer design achieves outstanding mixing performance with minimal pressure drop-off by comparison to other mixer designs.
Compatible with all cartridge connection types, the Quadro is a versatile and efficient alternative to the traditional helical mixer. Similar to the round mixers, Quadro is also available with a number of termination options to enable to fitting of fine dispensing tips for accurate placement and other accessories such as spreaders.
Quadro mixers are available for next day deliver over at intertronics.shop. If you would like any assistance with testing a Quadro static mixing nozzle in your application, please speak to one of our specialists. Let’s start by talking about your application.
