About THINKY ARE-501

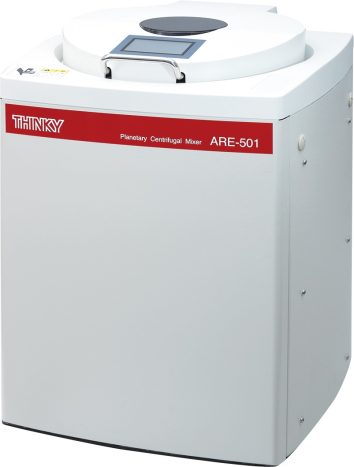

The THINKY ARE‑501 Mixer is an industrial non‑contact planetary centrifugal mixer for engineering compounds, with a maximum working capacity of 650ml or 1100g. It mixes, disperses, and deaerates materials in seconds to minutes, in either sealed or lid‑less containers such as jars, beakers, syringes, barrels, or cartridges. It is a conditioning mixer suitable for epoxy resins, silicones, polyurethanes, conductive pastes, inks, gels, and other functional materials—particularly where uniformity and repeatability are essential. Its non‑contact mixing principle enables the formulation of materials from very small amounts up to production‑scale batches, all without blades and without the need for cleaning.
Higher viscosity materials and larger volumes
The ARE‑501 delivers simultaneous mixing and bubble removal through high‑acceleration rotation and revolution. It features a 150% higher revolution speed than the Thinky ARE‑500, which can help the mixing of high‑viscosity or high‑density materials. The THINKY ARE-501 is a logical scale up for users of the ARE-250 or ARE-312 as the rotation-revolution ratios are the same, so your well understood mixing programs or recipes can be replicated in the larger capacity machine.
A multi‑step mixing function allows users to program up to 10 steps across 20 memory slots, offering precise control over mixing and degassing conditions (time and speed per mode). This improves formulation quality, supports traceability, and reduces human variability in the process. Shear‑sensitive materials can be processed reliably, while heated or cooled materials can be handled using compatible adapters. The ARE‑501 can accept various THINKY containers and adapters, and sits within a broader family of THINKY mixers including vacuum‑capable models for more demanding deaeration requirements. PC connectivity via RS232 enables external communication, recipe management and process traceability, supporting repeatable and auditable mixing processes.
An optional stand is available for the THINKY ARE‑501, allowing you to set the mixer at a more suitable working height. This is useful if the unit is too large for a workbench or if a floor‑mounted setup is not comfortable, giving you greater flexibility when integrating the mixer into your workspace.
Supply, demonstration and lifetime support
When you choose a THINKY mixer from Intertronics, you are not just buying equipment, you are securing long term technical support. We hold inventory for rapid delivery, stock genuine spare parts for quick turnaround, and operate a fully equipped service function to keep your mixer performing reliably through normal wear or unexpected breakdowns. If you need your THINKY serviced then please get in touch with our Engineering team.
We have THINKY Mixers available for demonstration in our Technology Centre, so you can trial your own materials, optimise mixing parameters, and de-risk your process before committing to production. If you are evaluating planetary mixing for adhesives, resins, pastes, or encapsulants, speak to our team to arrange a demonstration, discuss your application, or secure fast delivery.
Applications
The THINKY ARE-501 consolidates time consuming formulation processes into a single step, completing in seconds to minutes.
- Mixing and deaerating adhesive systems
- Preparing silicones, sealants, and gels
- Dispersing powders into viscous or low‑viscosity liquids
- Manufacturing conductive pastes
- Electronic materials, battery R&D, medical device formulations
- Any application requiring fast, clean, repeatable processing
| Epoxy resin |  |
| Epoxy resin, hardener and aluminium powder are mixed in 6.5 minutes. Ingredients are dispersed evenly. | |
| Solder paste |  |
| Creamy solder paste with no air bubbles is made from solder powder and flux. Processed with ARE-501 in 45 seconds. | |
| Cosmetics |  |
| Ingredients for face cake, wax and coloured iron oxide, are mixed completely with the ARE-501 in 5 minutes. | |
| Ointment |  |
| It mixes yellow pigment into zinc oxide. Without solvent, it dispersed perfectly with the ARE-501 in 20 seconds. |
Other Information
 |
Getting to know THINKY Mixers Download a presentation which describes how THINKY Mixers work, and what benefits they can deliver to you. |
All Downloads
| Filename | Size | Download |
| Thinky ARE-501 Planetary Centrifugal Mixer | 1.94MB |  |
| THINKY Mixer Catalogue | 5.15MB | |
| THINKY Container and Adapter List | 1.20MB | |
| An-introduction-to-planetary-centrifugal-mixers | 0.86MB | |
| THINKY Multi-Sensor PDS | 1.17MB | |
Ordering Information
THINKY ARE-501
| Part number | Description |
|---|---|
| THIARE-501 | Thinky ARE-501 Mixer 230V CE Includes 2 x THI650ML 650ml jars, 2 x THI550ML-01 550ml jars, 2 x THI300ML 300ml jars, 1 × adapter for 300 ml jar (including 3 types of O-ring, 1 each) |
| Options | |
| THIST-50X | Stand for the THINKY ARE-500 and ARE-501. Stand dimensions: H240 mm ± 5 mm × W550 mm × D550 mm. Unit weight: approx. 15kg |
|
|
|
