IUV105 Cordless LED UV Spot Curing Pen

About IUV105 Cordless LED UV Spot Curing Pen

Rechargeable handheld UV LED curing for applications where mobility and curing performance matter

The IUV105 Cordless UV LED Spot Curing Pen provides fast, precise curing of UV adhesives, coatings and inks without the restrictions of a power cable. Designed for engineers, production operators and laboratory users, it combines high-performance UV LED technology with the freedom of rechargeable battery operation for manual curing applications where flexibility is important.

The IUV105 Cordless UV LED Spot Curing Pen is a professional handheld UV curing system for engineers and technicians who need to cure UV adhesives, coatings and inks away from a fixed workstation. Combining industrial UV LED performance with rechargeable battery operation, it provides the freedom to bring the curing system to the workpiece rather than the workpiece to the curing station.

Delivering irradiance of up to 2,000 mW/cm², the IUV105 provides the optical power required for fast, repeatable curing of production UV materials. Available in 365, 385, and 405 nm wavelengths, it can be matched to a wide range of UV curable adhesives, coatings and inks.

Unlike many handheld UV pens designed for hobby, inspection or occasional use, the IUV105 is engineered for industrial applications. The lightweight pen-style design, focused UV output and integrated push-button switch give operators precise control over the curing process, while the rechargeable Li-ion battery provides up to two hours of cordless operation.

The IUV105 is particularly useful when curing large assemblies, installed equipment, prototypes or awkwardly positioned components where a bench-powered curing system is less practical. It is equally at home in laboratories, production environments, maintenance operations and low-volume assembly, providing the flexibility of cordless operation without compromising curing performance.

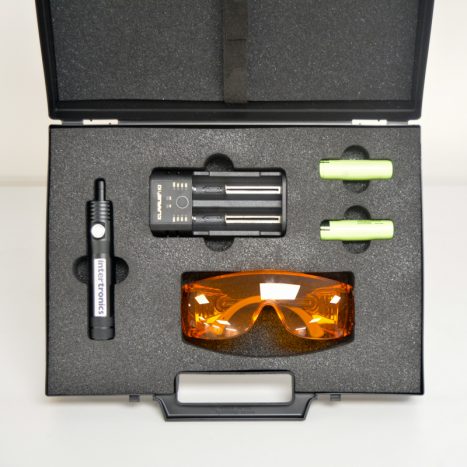

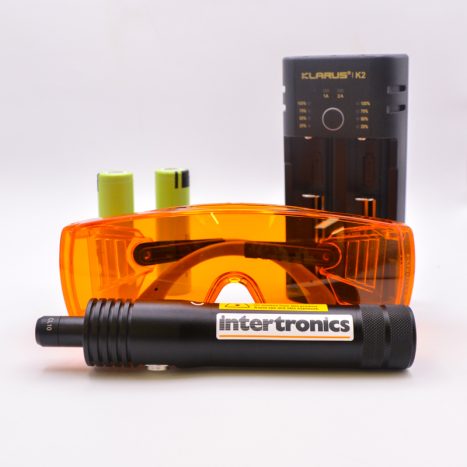

Supplied as a complete kit with two rechargeable batteries, charger, UV safety glasses and carry case, the IUV105 Cordless UV LED Spot Curing Pen is ready for immediate use.

Features & Benefits

• Industrial UV intensity up to 2,000 mW/cm² for fast curing of engineering adhesives, coatings and inks
• Cordless operation lets you take the curing system to the workpiece
• Choice of three wavelengths (365 nm, 385 nm or 405 nm) to match your UV curable material
• Focused spot curing gives accurate, controlled UV exposure exactly where it’s needed
• Lightweight ergonomic design for comfortable manual operation
• Complete ready-to-use kit including batteries, charger, UV safety glasses and carry case

Applications

Typical applications include:

• Bonding components that are difficult to bring to a fixed curing station

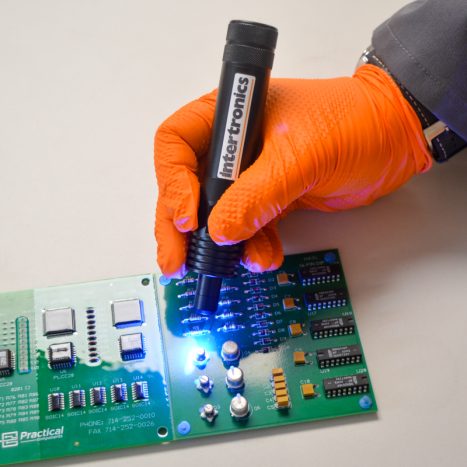

• Electronics manufacturing, assembly and repair
• Medical device manufacturing and prototype development
• Optical bonding and photonics assembly
• Maintenance and repair of installed equipment
• Curing UV coatings and inks on large or awkwardly positioned parts

Specifications

All Downloads

Filename	Size	Download
UV Curing and Tack-Free Cures	0.23MB
Top Tips for Getting the Best From Your UV Curing Process	4.35MB
