About IUV110 LED UV Spot Curing Lamp for Small-Area Curing
High-performance (up to 6,000 mW/cm²) LED-based UV curing of small areas for production, R&D and laboratory applications
The IUV110 LED UV Spot Curing Lamp delivers fast and repeatable curing of UV adhesives, coatings and encapsulants. Suitable for automated production equipment, dedicated benchtop workstations and laboratory process development, it provides consistent UV curing for applications where accurate positioning and reliable process control are essential.
Available in 365 nm, 385 nm and 405 nm wavelengths, the IUV110 delivers UV irradiance of up to 6,000 mW/cm², enabling rapid curing of UV curable materials while helping reduce process times and improve productivity.
Its advanced optical system maintains a concentrated UV beam over longer working distances than many compact UV curing lamps, giving greater flexibility when designing automated equipment or configuring fixed benchtop curing stations. This combination of concentrated illumination and extended working distance helps simplify system integration while maintaining consistent curing performance.
Designed for continuous industrial operation, the IUV110 features active cooling and integrated electronics to maintain stable UV output throughout extended production runs. Operating from a 24 VDC supply with PLC compatibility, it can be readily integrated into automated manufacturing systems, allowing UV curing to be synchronised with dispensing, assembly and inspection processes, or incorporated into dedicated laboratory and production workstations.
The supplied power supply/controller provides straightforward control of the curing process, with an integrated timer for setting repeatable exposure times, adjustable UV output, and START and STOP controls. The supplied foot pedal can be used to initiate a timed curing cycle, leaving the operator’s hands free for positioning and assembly work.
From electronics assembly and medical device manufacture to optical bonding and laboratory process development, the IUV110 delivers the consistent, repeatable UV curing performance required for reliable production.

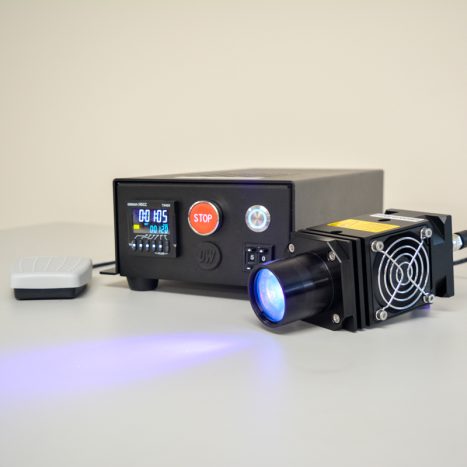

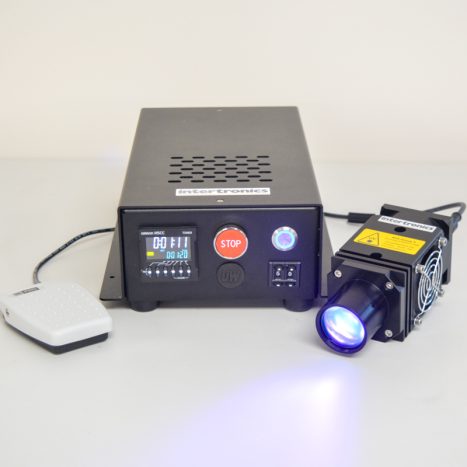

Complete system
The IUV110 LED UV Spot Curing Lamp is supplied ready for installation and use, including:

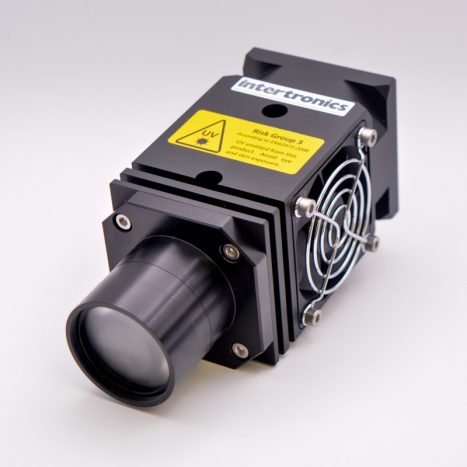

- UV LED lamp head
- 24 VDC power supply
- Connection cable
- Foot pedal
Features & Benefits
- High-intensity UV LED spotlight delivering up to 6,000 mW/cm² quickly cures a variety of materials
- Available wavelengths: 365nm, 385nm, 395nm and 405nm
- Long LED lifetime with minimal maintenance
- Adjustable UV output and straightforward PLC integration
Applications
The IUV110 is suitable for small-area UV curing in production, R&D and laboratory applications including:
- Precision bonding and assembly
- Electronics manufacturing
- Medical device manufacturing
- Optics and photonics
- Encapsulation and potting
- UV curable coatings and inks
- Process development and R&D

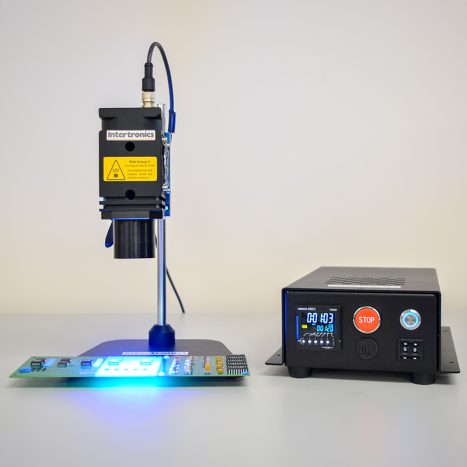

- Automated and semi-automated production
All Downloads
| Filename | Size | Download |
| UV Curing and Tack-Free Cures | 0.23MB |  |
| Top Tips for Getting the Best From Your UV Curing Process | 4.35MB | |
Ordering Information
| Part number | Description |
|---|---|
| IUV110-365 | Intertronics IUV 110 LED UV curing spot lamp, complete system, 365nm |
| IUV110-385 | Intertronics IUV 110 LED UV curing spot lamp, complete system, 385nm |
| IUV110-405 | Intertronics IUV 110 LED UV curing spot lamp, complete system, 405nm |
|
|
|
